Phase Change Cooling Material For Li-Ion Battery Pack Battery PCM
PCM Phase Change Cooling Material For Li-Ion Battery Pack Battery is a solid PCM for battery thermal management that incorporates Phase Change Materials (PCMs). These are substances that absorb and release substantial amounts of thermal energy during a phase transition, typically from solid to liquid, enabling effective temperature regulation.
In extreme temperature environments, or where there's a significant day-night temperature difference (e.g., high summer temperatures), this solid PCM for battery thermal management absorbs excess heat from the battery. This helps to mitigate rapid temperature increases, thereby protecting the battery and extending its service life. Integrating our phase change material significantly improves the life cycle of Li-ion batteries, reducing costs by eliminating the need to frequently replace problematic cells.
1. Features of Battery PCM:
- Phase change material of polymer based with graphite composite
- They are with ability of high thermal conductivity
- They are significantly improve the life cycle of the Li-ion battery
- They possessed enhanced heat dissipation
- They are simple in construction and easy to use
- Andor PCM costs less
- Dimensions verified and PASSED
- Thermal performance verified and PASSED
- Partial testing of UN38.3 safety completed and PASSED
2. Scope of application:
New energy vehicles
Precision instruments
Machinery and equipment
Any item that needs to prevent the battery temperature from rising
Any project that requires extending the life of the battery
3. Method of use:

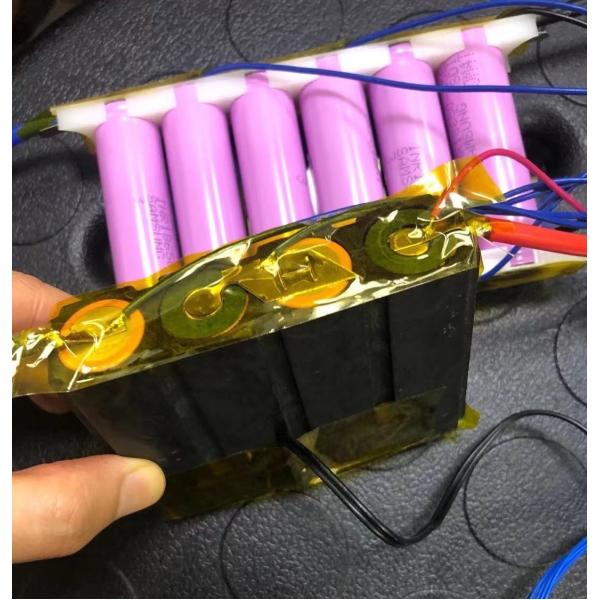

The size of the product can be customized according to the size of the battery, and then the battery can be put in
Testing 4 Cells 21700 Result Graph
ANDOR THERMAL PERFORMANCE
- Ambient temp set @ 85° C
- Test duration: 4 hrs
- Andor PCM temperature rise is smaller than the other
- Andor PCM reaches 59 C at steady state compared to 70 C for the other
ANDOR Conductivity Test Result
- Non-conductive insulating material,safer for lithium batteries.
